Chademo Update, take 3, ESP32 time.

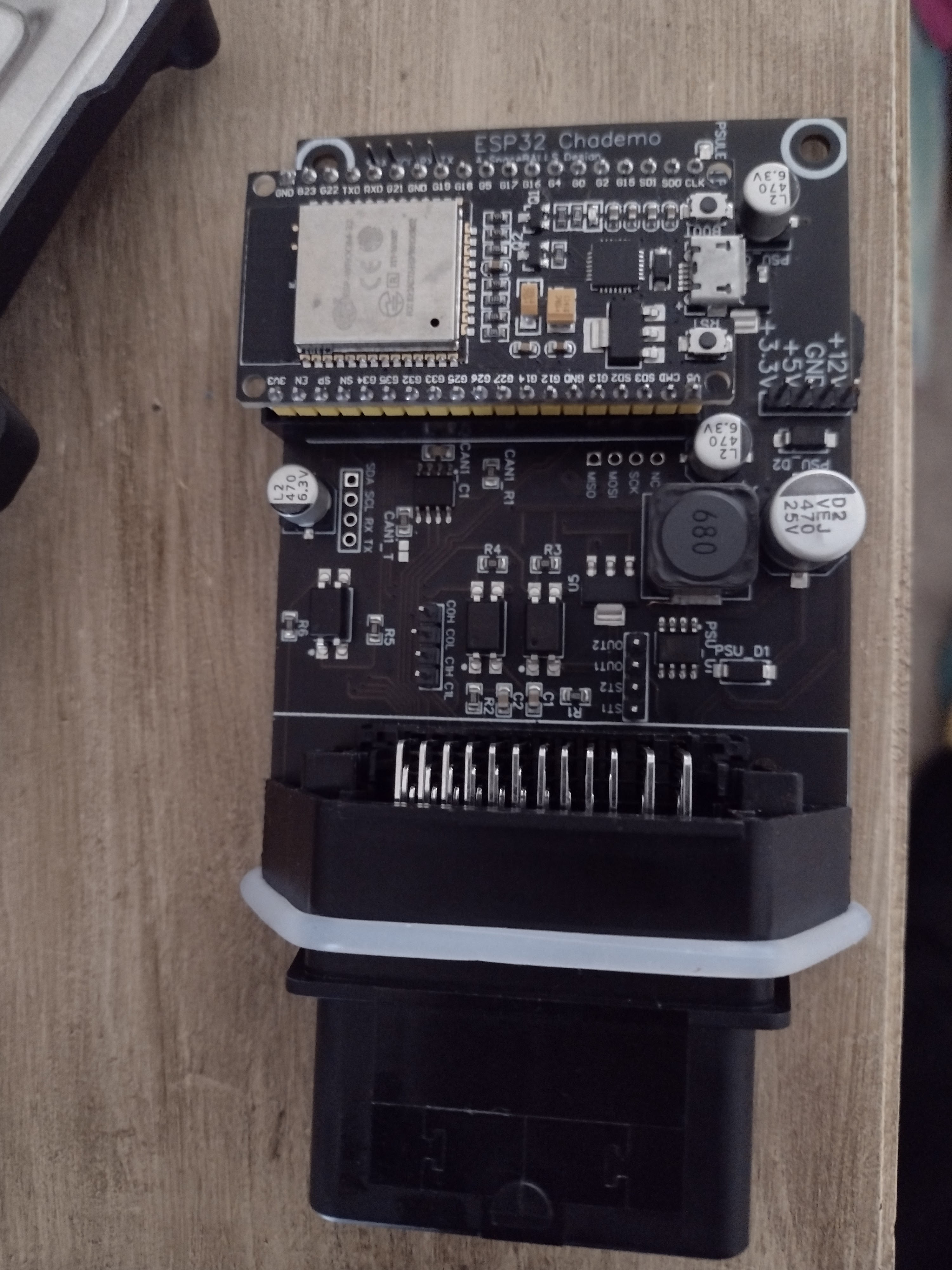

I was never happy with the Due chademo solution, and I do like the ESP32 so a while back I set about designing a new board.

It's designed to fit in an ECU type enclosure, so looks much better. The software and hardware files are open source here: https://github.com/jamiejones85/ESP32-Chademo I also intend to setup a web shop at some point and make these available if anyone wants one. Anyway, below is a video of it in action.

Comments

DVLA Inspection

I decided to try get the DVLA to update the V5 to electric for the 4th or 5th time, but this time I was told I'd need an inspection before the change could be made. The inspection was by a 3rd party company. The guy turned up and took a load of photos, looking for the changes I'd made, and tallying up the points against the points system they use to decide if it's radically altered or not. Your vehicle must have 8 or more points from the table below if you want to keep the original registration number. 5 of these points must come from having the original or new and unmodified chassis, monocoque bodyshell or frame. Part Points Chassis, monocoque bodyshell (body and chassis as one unit) or frame - original or new and unmodified (direct from manufacturer) 5 Suspension (front and back) - original 2 Axles (both) - original 2 Transmission - original 2 Steering assembly - original 2 Engine - original 1 Given that I had the original gearbox, suspension, steering assembly and only

DVLA Refusal to Update V5

Now with over a 1000 miles done on electric, and over 6 months of to and fro, the DVLA are still refusing to update my V5 to electric and change the tax classification. Their reasoning in the VERA act, below, they have taken this to mean that on post 2001 vehicles the fuel type and tax classification cannot be changed. This is despite the DVLA website (https://www.gov.uk/change-vehicle-details-registration-certificate) making no reference to been unable to make the changes. LPG conversions, changes to disabled classification and conversions to a camper-van are all possible. Here's another part of the VERA act. The purpose of this post is to document my experience with the DVLA, so back in August 2021, the 2nd to be exact, I filled out my V5 to change the fuel type to electric and tax class to electric. On the 14th of October I was asked to provide more details, receipts, photos etc. I was also asked to fill out a V627/1 built up vehicle report. Below is the first letter I receive

Golf GTE Battery Disassembly

Having deliberated over battery pack options, I was convinced I would go for a pack from a BMW plug in hybrid or the Outlander PHEV, but a pack from a Golf GTE popped up on eBay for £500 delivered, which was too good to let pass by, at 8.8kwh it works out at £57 per kilowatt hour, a bargain. Tearing it down wasn't the easiest task, and with 350v - 400v under there, a little nerve wracking. The lid was glued down with some serious adhesive. The pack consists of 4 modules, each module is 2 strings of 12 cells, with a cooling plate between them for liquid cooling. Each of the 12 cells has a BMS slave board, which reports the voltage of cell cell to the BMS master, along with the temperature of the string. Each module can store just over 2 kwhs. The modules communicate with the master via a CAN Bus network that's internal to the battery. I've put up a GitHub repo with a DBC file for interpreting the reported frames https://github.com/jamiejones85/DBC-files if you are looking at
