Charing Port

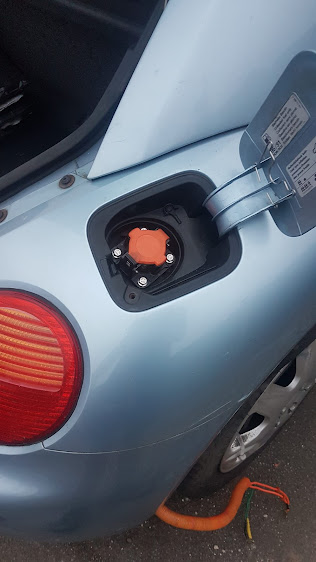

 The Type 1 AC inlet from a Nissan Leaf, fitted into the location where the fuel filler used to be. I cut off the top of the fuel inlet, preserving the mounting holes and created a 3D printed part to epoxy on to it so that the inlet could be screwed in to place.

Quite pleased with this, although it still need to actually finish wiring to the front of the car where the charger will live.
