Look inside the motor

I picked up a front gearbox from a Mitsubishi Outlander PHEV, with both the motor and generator attached. The motor and generator are pretty similar, the generator has an extra thermistor for temperature measurement but I think they're both apparently capable of 60KW. I got hold of this from Ebay before I'd decided on a car to have a go at converting.

The motor units are made by Meiden, they contain a Tamagawa resolver and appear to have 4 pole pairs and weigh in at around 30kg each. The output shaft is 19mm with 17 splines, it's a very close match to some Ford clutches.

The gearbox and motors was delivered on a pallet, it's easy over 100kg as a single unit.



Front Gear Box

Engine connection here

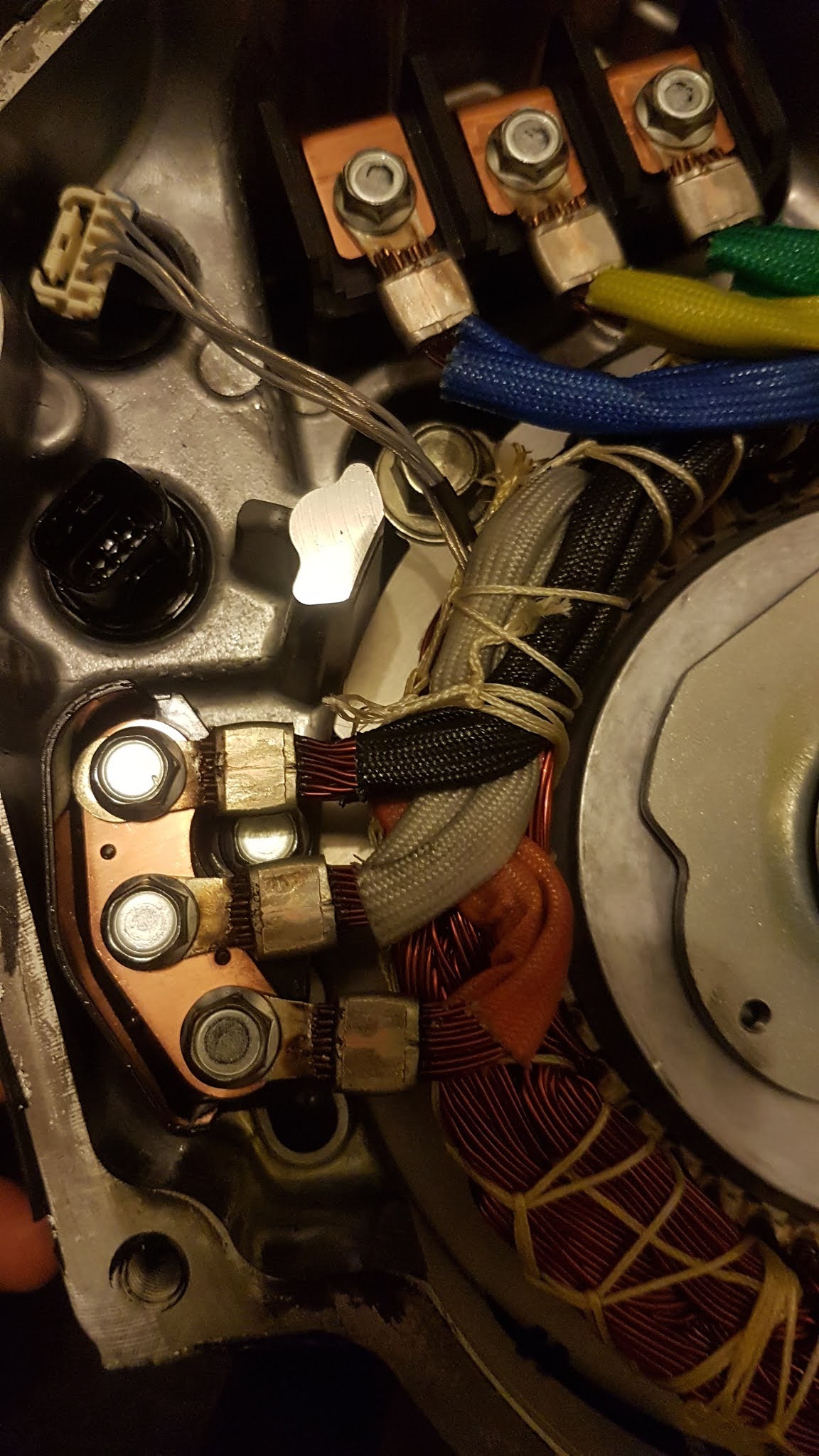

3 phase connections

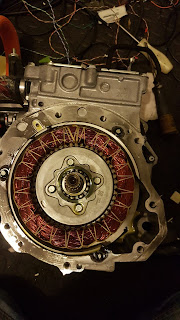

Stator

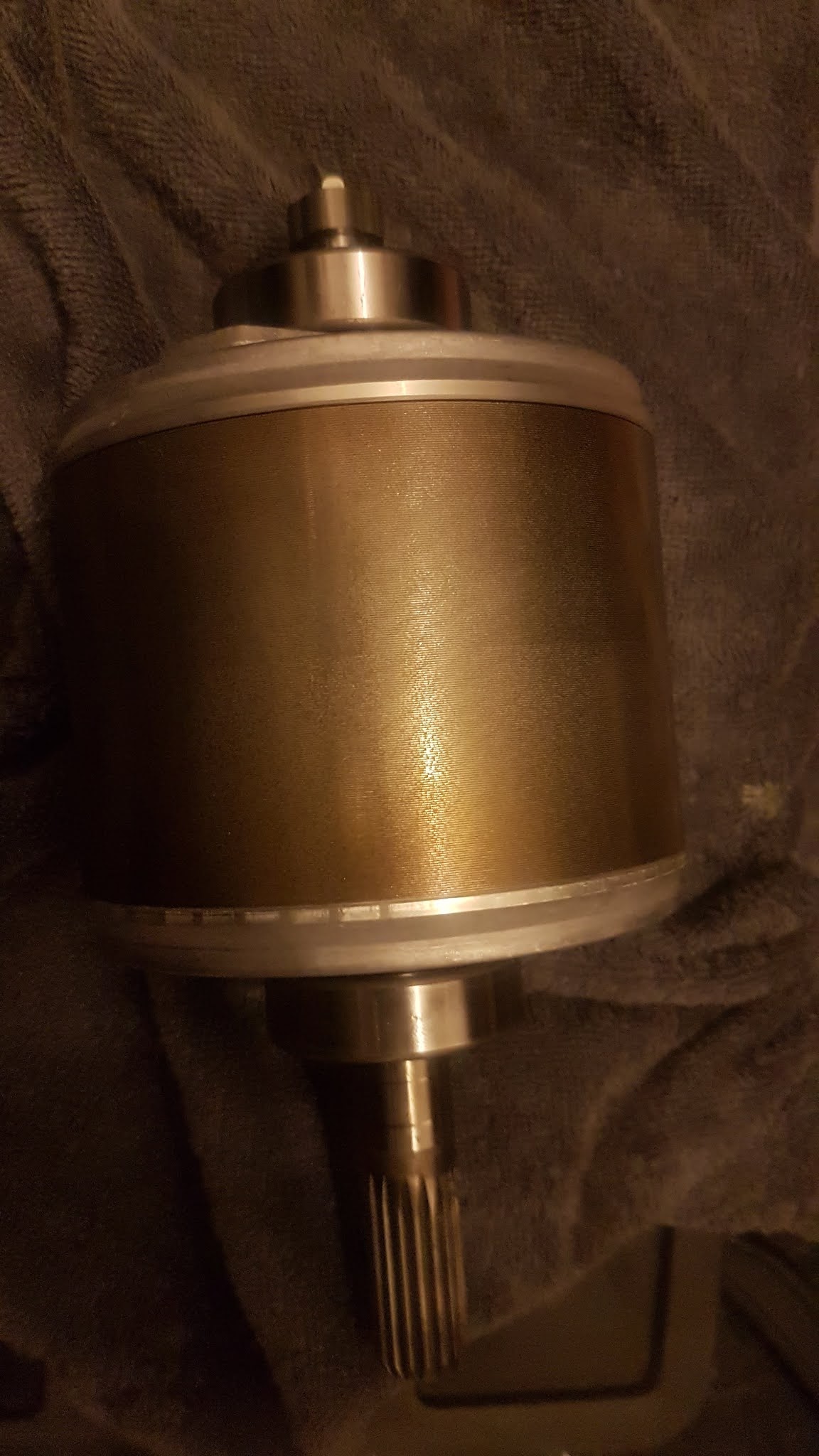

Rotor

Stator


Resolver
